8.With online hot stamping, easy operation, saving labour.
A custom-engineered extrusion die precisely shapes the molten WPC melt into the desired fluted panel profile (varying flute depth, spacing, and panel width).

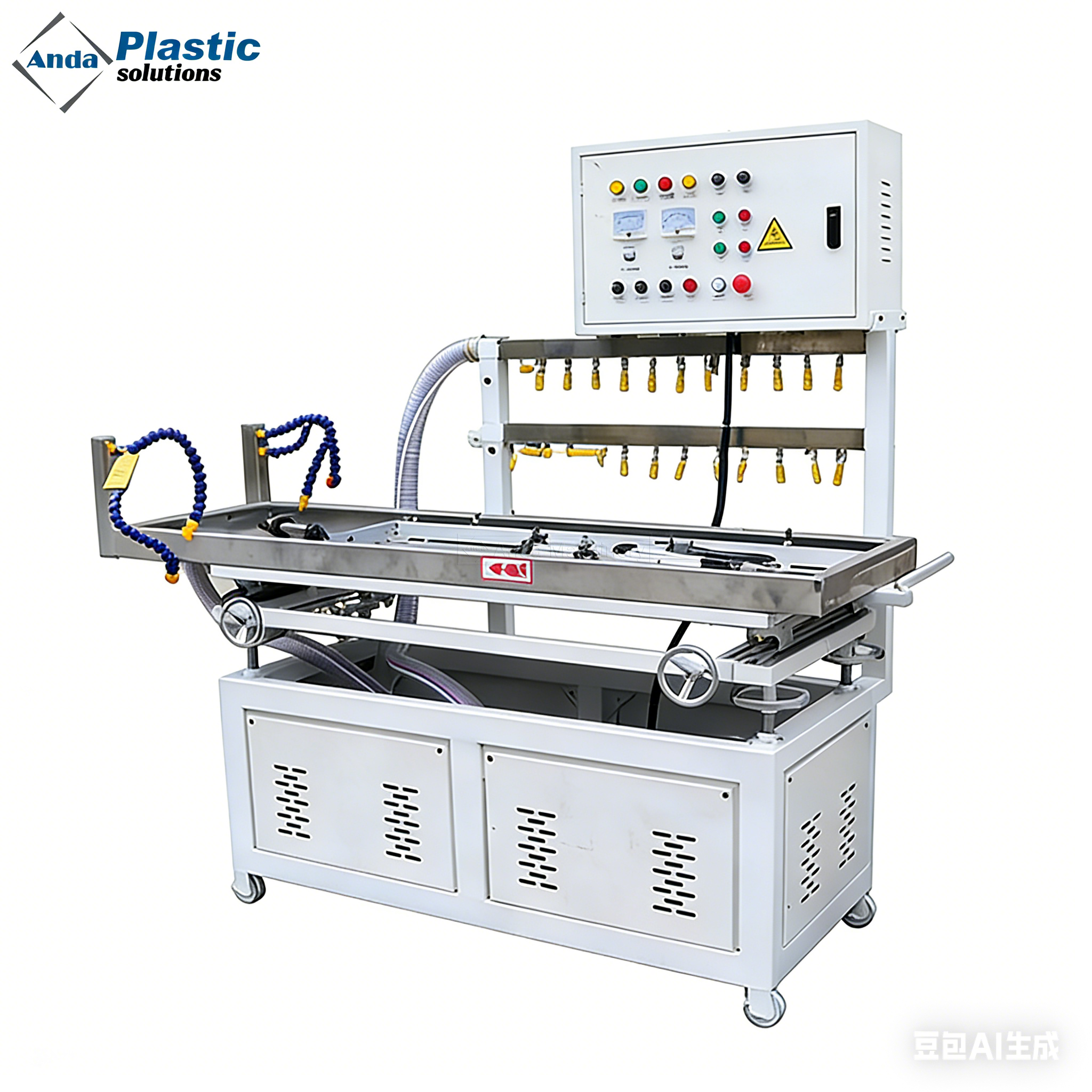

A vacuum calibrator/shaping table uses water cooling and vacuum forming to rapidly solidify and dimensionally stabilize the extruded profile, ensuring tight tolerances and uniform flute geometry.

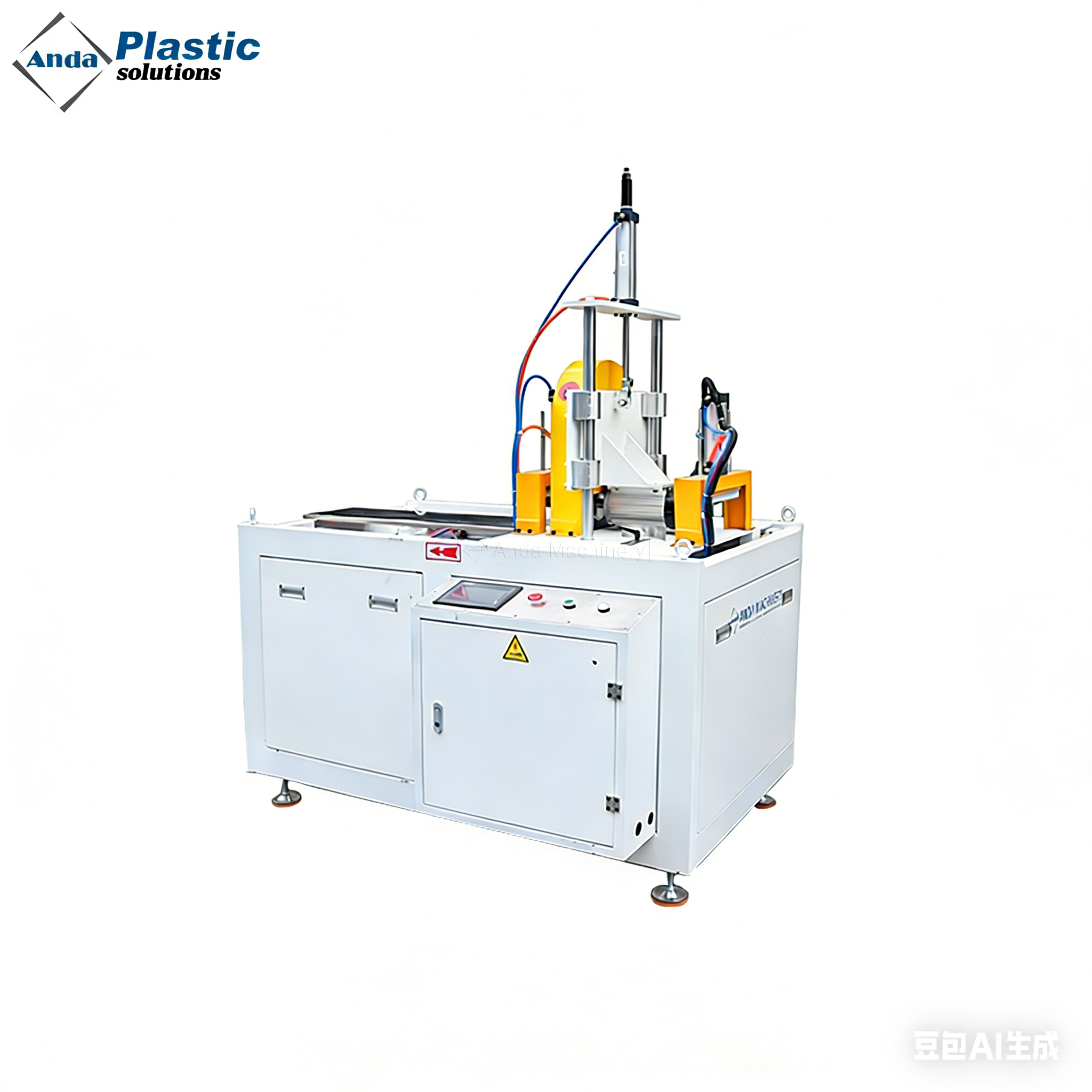

A servo-controlled, flying saw cuts the continuous panel to pre-set lengths (customizable per customer requirements) with high precision and minimal material waste.
Automatically stacks finished panels for quality inspection, packaging, and storage, completing the fully automated production cycle.
| Model | 48/113 common | 53/128 common | 53/128 high speed | 65/132 high speed |
| Applicable product width | 200-250mm | 200-250mm | 200-300mm | 20-600mm |
| Extruder Model | SJSZ48/113 | SJSZ53/128 | SJSZ53/128 | SJSZ65/132 |
| Capacity(kg/h) | about 2200(about 800 square meter/24h) | about 3000(about 1200 square meter/24h) | about 4000(about 1600 square meter/24h) | about 8000(about 3300 square meter/24h) |
| Main motor power(kw) | 15 | 22 | 22 | 37 |
Advanced die design and vacuum calibration ensure uniform flute depth, smooth surface finish, and tight dimensional tolerances across entire production runs.
PLC-based automatic control system stabilizes all process parameters, minimizing human error and ensuring batch-to-batch consistency.
High-speed extrusion technology boosts output while reducing energy consumption per unit product.
Intelligent induction heating systems (replacing traditional resistance heating) improve thermal efficiency and reduce power usage.
Synchronized haul-off and cutting minimize downtime and material waste, optimizing overall production efficiency.
Quick mold changeover allows production of various fluted profiles, panel widths (20–600 mm), and surface textures to meet diverse design requirements.
Compatible with PVC, PE, and PP-based WPC formulations, expanding material and product application possibilities.
Key components (screws, barrels, dies) made from high-strength, wear-resistant alloy steels ensure long service life even with abrasive WPC materials.
Robust, heavy-duty frame design provides stable operation under high-load conditions, reducing vibration and mechanical wear.
User-friendly design simplifies routine maintenance, lowering operational downtime and costs.
Utilizes recycled wood fiber and plastic, reducing reliance on natural timber and promoting circular economy principles.
High filler loading capacity (up to 250 phr CaCO₃ for PVC formulations) significantly reduces raw material costs while maintaining product performance.
WPC panels produced require no painting, are moisture/rot/insect resistant, and have a long service life, offering superior lifecycle economics compared to natural wood.
The WPC Fluted Wall Panel Making Machine represents a state-of-the-art solution for the modern building materials industry, merging advanced extrusion technology with eco-friendly material science. It enables manufacturers to produce high-value, durable, and aesthetically versatile WPC fluted panels efficiently and cost-effectively, catering to the growing global demand for sustainable and low-maintenance decorative building products. With its robust design, precise control, and operational flexibility, this machine is an indispensable asset for businesses looking to expand into the lucrative WPC decorative panel market.
