WPC Louver Panels Wall Panel Making Machine

Name: WPC Louver Panels Wall Panel Making Machine
Brand: Anda
Rating: 5.0 (3 reviews)

Product Overview:

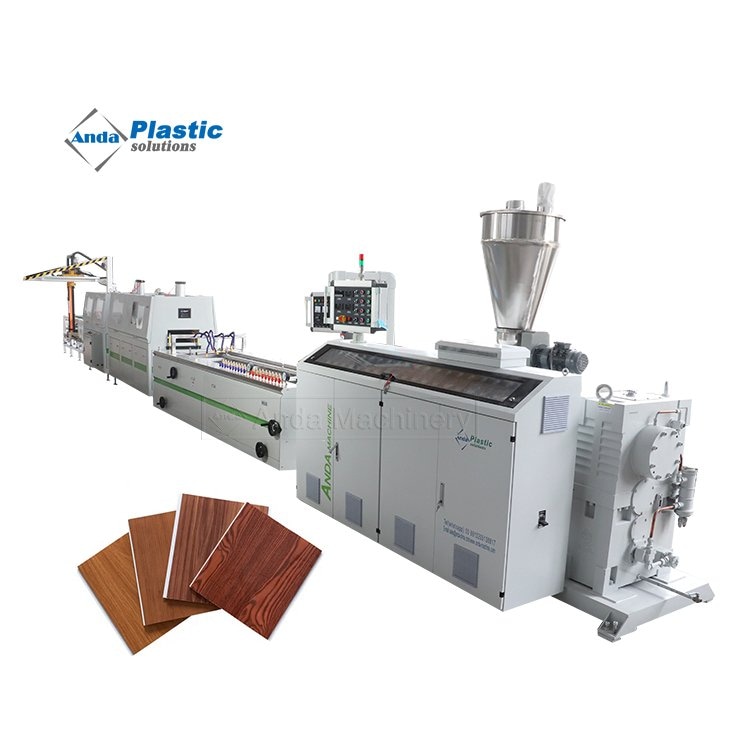

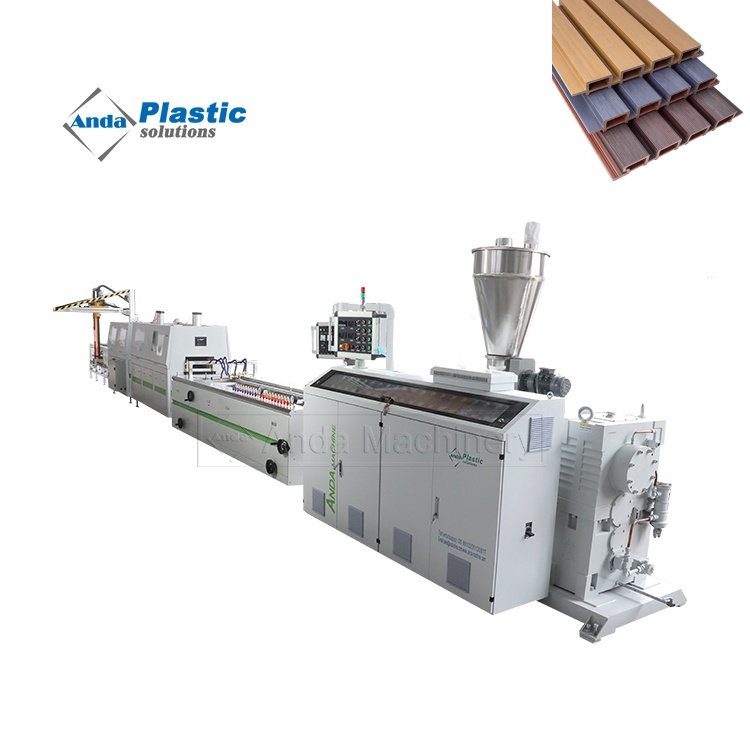

The ANDA WPC louver panel production line produces PVC-based louver, fluted, slat and decorative wall panels.

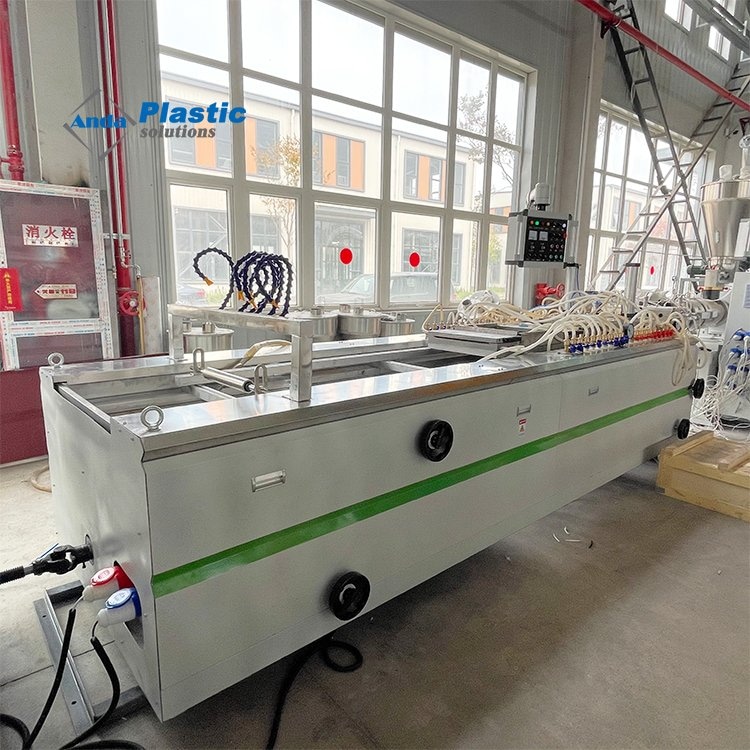

It integrates feeding, extrusion, calibration, cooling, haul-off and cutting. Optional hot stamping creates various decorative finishes. Different panel sizes and profiles can be produced by changing the molds.
Main Production Capabilities:

Produces WPC louver and fluted wall panels
Supports reference panel widths from 200 to 600 mm
Conical twin-screw extrusion system
PID multi-zone temperature control
Synchronized extrusion and haul-off speeds
Optional online hot-stamping system
Customized molds for different panel profiles
Reference daily output up to 8,000 kg*
Installation and production training available

Availability:

Quantity:



Inquire Add to Basket

Brand:
Anda
国家:
China
YANSE:
JINSE

WPC Louver Panel Products Description

The production line is developed for PVC-based WPC decorative profiles. It can produce different wall panel styles by changing the extrusion mold and calibration tooling.

Typical products include:

WPC louver wall panels
WPC fluted wall panels
WPC slat wall panels
Decorative interior wall panels
Hollow WPC wall profiles
WPC ceiling decoration profiles
Feature-wall panels
Partition and room-divider profiles
Interior cladding profiles
Customized decorative WPC profiles

Panel width, thickness, cavity structure, surface pattern and installation joint can be customized according to the customer’s sample or technical drawing.

This flexibility helps manufacturers serve different interior decoration markets while using one main extrusion platform.

Applications of Finished WPC Louver Panels

WPC louver panels combine the appearance of wood with the processing advantages of PVC-based composite materials. Their fluted surface creates visual depth while concealing uneven wall surfaces.

The finished panels can be used in:

Hotel reception areas
Office feature walls
Commercial interiors
Retail stores
Restaurants and cafés
Conference rooms
Exhibition halls
Residential living spaces
Interior ceilings
Decorative partitions
Entertainment venues
Public building interiors

Final product performance depends on the raw material formulation, panel structure and surface-finishing process.

Technical Parameters

Parameter	Configuration 53/128	Configuration 65/132
Applicable panel width	200–300 mm	200–600 mm
Reference main motor power	22 kW	37 kW
Reference daily output	Approx. 4,000 kg	Approx. 8,000 kg
Reference panel area per 24 hours	Approx. 1,600 m²	Approx. 3,300 m²
Temperature control	PID control	PID control
Speed control	Frequency control	Frequency control
Surface finishing	Optional hot stamping	Optional hot stamping
Mold configuration	Customized	Customized

Frequently Asked Questions

What does the WPC louver panel production line produce?

It produces PVC-based WPC louver panels, fluted wall panels, slat wall panels and decorative interior profiles. Different products require matching extrusion and calibration molds.

What raw materials can the machine process?

The line is primarily configured for PVC-based WPC dry blends. Common ingredients include PVC resin, wood powder or plant fiber, calcium carbonate, stabilizers and processing additives.

The final formulation must be tested according to the required panel quality.

Can one production line make different panel designs?

Yes. The main extrusion line can produce different panel profiles by changing the extrusion mold and corresponding calibration tooling.

The suitable range depends on extruder capacity, panel width and mold structure.

What panel widths are available?

The existing configurations cover reference widths from 200 to 600 mm. Wider or special profiles require technical evaluation.

Can the machine produce both louver and fluted wall panels?

Yes. These terms often describe similar decorative wall-panel profiles. The exact shape depends on the mold design.

Can the line produce outdoor PE-WPC panels?

This configuration is mainly described for PVC-based interior WPC panels. PE-WPC outdoor profiles use a different material-processing system and may require a different extruder, mold and cooling configuration.

Customers requiring outdoor PE-WPC cladding should request a separate technical evaluation.

Is online surface decoration available?

Yes. An optional hot-stamping unit can add wood-grain, stone-grain or decorative films during production.

How is the machine capacity selected?

Capacity is selected according to panel width, panel weight, formulation, mold structure and required production volume. A product drawing is recommended for accurate line selection.

How much does a WPC louver panel making machine cost?

The price depends on the extruder model, mold quantity, output requirement, electrical brands, surface-finishing equipment and auxiliary machines.

Send ANDA your panel drawing and required capacity for an accurate quotation.

Can ANDA customize the extrusion mold?

Yes. The mold can be designed according to a panel sample, sectional drawing or required product dimensions.

What should be prepared before installation?

The customer should prepare the power supply, cooling water, compressed air where required, raw materials, workshop space and lifting equipment according to the technical documents.
