PVC Wall Panel vs WPC Wall Panel Comprehensive Comparison and Analysis
I. Introduction
• Background: The development trend of wall decoration materials is moving towards environmental protection, high efficiency, and texture, focusing on non-toxicity, recyclability and easy construction. As mainstream eco-friendly materials, PVC and WPC wall panels are widely used. PVC wall panels apply to family damp areas, commercial spaces and public works. WPC wall panels are suitable for family dry areas, high-end commercial venues and outdoor scenes, meeting diverse decoration needs.
• Core Purpose: To help purchasers, decorators and manufacturers clearly distinguish the differences between the two materials and choose the right products according to their needs.
II. Basic Definitions and Core Components

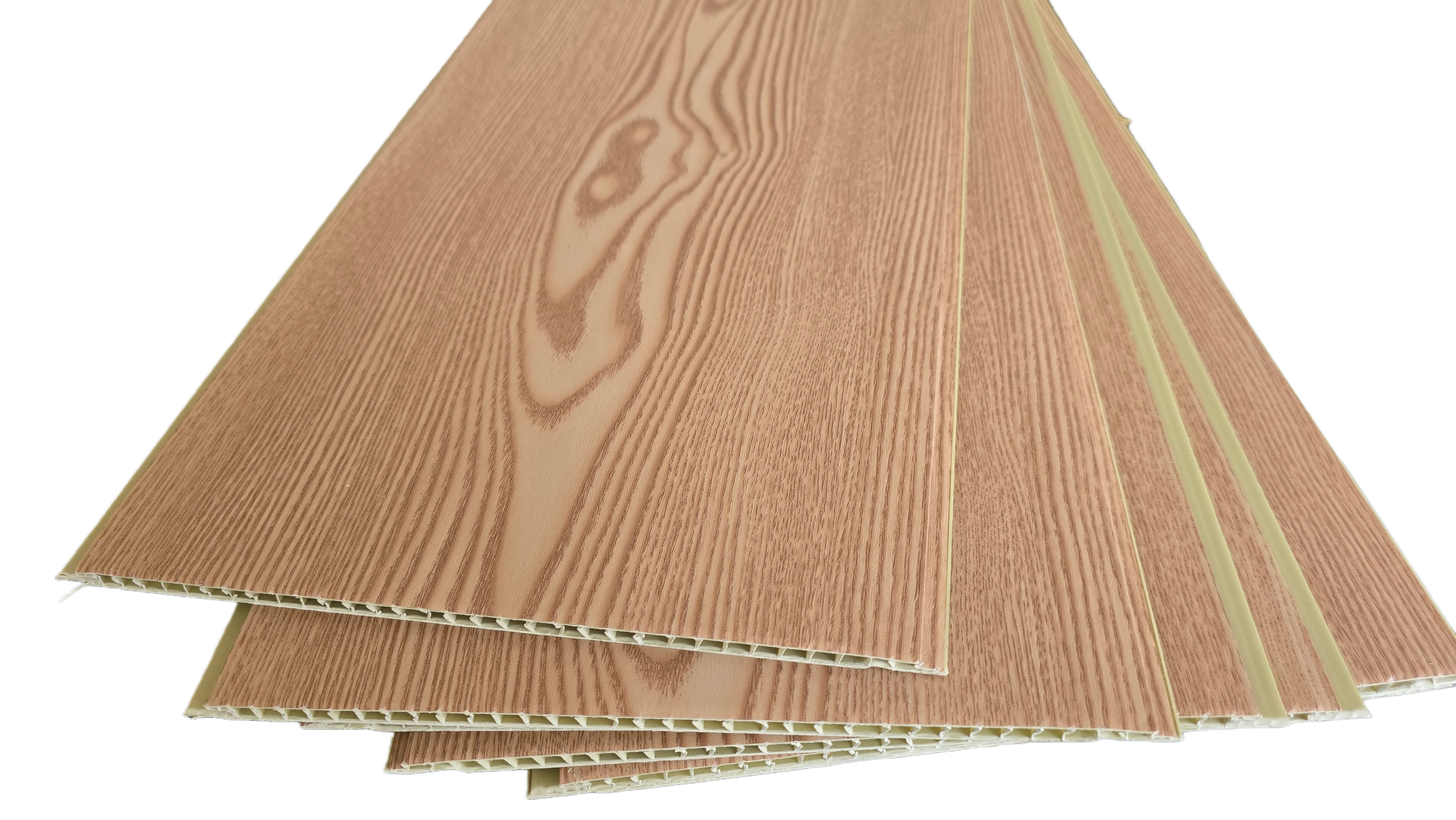

2.1 PVC Wall Panel
• Core Components: Taking polyvinyl chloride (PVC) resin as the main raw material, adding stabilizers, plasticizers, fillers and other auxiliary materials, formed by extrusion (can be associated with Anda extrusion equipment).
• Core Form: Solid/hollow structure, surface can be laminated, printed (wood grain imitation, solid color, etc.).
• Core Positioning: A cost-effective, easy-to-install, waterproof and moisture-proof general-purpose wall decoration material.
2.2 WPC Wall Panel
• Core Components: Composed of wood powder (or bamboo powder, plant fiber) and PVC/PE resin, adding compatibilizers and anti-aging agents, formed by extrusion and molding (associated with Anda composite extrusion equipment).
• Core Form: Mostly solid structure, surface with natural wood grain texture, can be matte or soft light treated.
• Core Positioning: Combining wood texture with environmental protection and waterproof performance, the preferred material for mid-to-high-end decoration scenarios.
III. Comprehensive Comparison of Core Characteristics
3.1 Physical Performance Comparison
Characteristics | PVC Wall Panel | WPC Wall Panel | Comparison Notes |
Density & Weight | Lightweight, density 1.3-1.5g/cm³ | Heavier, density 1.1-1.3g/cm³ | PVC is easier to handle and install due to its lighter weight |
Hardness & Toughness | High hardness, medium toughness, general impact resistance | Excellent toughness, strong impact resistance, not easy to break | WPC has better toughness and impact resistance than PVC |
Wear Resistance | Wear-resistant after surface lamination; general wear resistance for uncoated panels | Naturally wear-resistant, no additional surface lamination required, longer service life | WPC has better inherent wear resistance and longer service life |
3.2 Chemical & Environmental Performance Comparison
Characteristics | PVC Wall Panel | WPC Wall Panel | Comparison Notes |
Environmental Protection | Formaldehyde-free, but some low-cost products contain plasticizers, which need to meet RoHS and CE standards | Formaldehyde-free and plasticizer-free, compounded by plant fiber and resin, recyclable, with higher environmental protection level | WPC has higher environmental protection level and is more in line with green decoration trends |
Corrosion Resistance | Acid-base and oil resistant, not easy to be eroded by chemical substances | Good corrosion resistance, but slight deformation may occur when in long-term contact with strong acid and alkali | PVC is more suitable for scenes with corrosion resistance requirements |
Aging Resistance | Easy to yellow and become brittle after long-term exposure to the sun, requiring the addition of anti-aging agents | Better aging resistance, not easy to deform or fade under exposure to the sun and humid environment | WPC is more suitable for outdoor or long-term use scenarios |
3.3 Application Environment Comparison
Characteristics | PVC Wall Panel | WPC Wall Panel | Comparison Notes |
Waterproof & Moisture-proof | Fully waterproof, can be used in humid areas such as bathrooms, kitchens and basements, no risk of deformation or mold | Waterproof but not moisture-proof, easy to absorb water and expand in long-term high-humidity environment, not recommended for heavily humid areas such as bathrooms | PVC is more suitable for humid areas; WPC should avoid heavy humidity |
Temperature Adaptability | Good low-temperature resistance, not easy to brittle below -10℃; general high-temperature resistance, easy to soften above 60℃ | More stable resistance to high and low temperatures, can be used normally at -20℃ to 70℃, not easy to deform | WPC has wider temperature adaptation range |
Indoor/Outdoor Adaptation | More suitable for indoor use, easy to age when used outdoors for a long time | Suitable for both indoor and outdoor use, more advantageous in outdoor scenes such as landscape walls and balconies | WPC is more versatile for indoor and outdoor applications |
3.4 Appearance & Decorative Performance Comparison
Characteristics | PVC Wall Panel | WPC Wall Panel | Comparison Notes |
Texture | Obvious plastic texture; can imitate wood grain and stone after lamination, but the touch is relatively hard | Natural wood texture, clear grain, texture closer to solid wood, stronger decorativeness | WPC has better texture and higher decorative grade |
Color & Style | Rich colors, can be made into solid colors and prints, diverse styles, low cost | Colors are mainly wood grain colors, styles are simple and high-end, and special textures can be customized | PVC is more diverse in color; WPC is more high-end in style |
Surface Treatment | Lamination treatment is required to improve aesthetics, and film peeling is easy to occur | No additional surface lamination required, natural texture, simpler later maintenance | WPC is more convenient in surface treatment and later maintenance |
3.5 Installation & Maintenance Comparison
Characteristics | PVC Wall Panel | WPC Wall Panel | Comparison Notes |
Installation Difficulty | Lightweight, can be directly spliced and nailed without professional tools, high installation efficiency | Heavier, requires professional installation team, higher splicing requirements, slightly higher installation cost | PVC is easier and more efficient to install, with lower installation cost |
Maintenance Cost | Easy to clean, can be directly wiped with water, and single panels can be replaced separately if damaged | Simple to clean, no special care required, slightly more difficult to repair if damaged | PVC is more convenient to maintain and repair |
Service Life | 8-12 years under normal use | 15-20 years under normal use, longer service life | WPC has a significantly longer service life than PVC |
3.6 Cost & Cost-Effectiveness Comparison
Characteristics | PVC Wall Panel | WPC Wall Panel | Comparison Notes |
Raw Material Cost | PVC resin + filler, lower cost | Wood powder + resin + compatibilizer, higher raw material cost | PVC has obvious advantage in raw material cost |
Production & Processing Cost | Simple extrusion process, high processing efficiency, low cost, adaptable to Anda's conventional PVC extruders | Composite extrusion process, high requirements for equipment, high processing cost, requiring special composite extruders | PVC has lower production and processing cost, simpler equipment requirements |
Terminal Price | Affordable, suitable for bulk procurement and low-cost decoration | Mid-to-high-end pricing, suitable for scenes focusing on texture and long-term use | PVC is more cost-effective for low-budget needs; WPC is suitable for high-end positioning |
Cost-Effectiveness Summary | Suitable for short-term decoration and low-cost needs | Suitable for long-term use, focusing on environmental protection and texture | Choose according to budget and use cycle; no absolute advantage or disadvantage |
IV. Production Process and Equipment Adaptability
4.1 PVC Wall Panel Production Process and Equipment Requirements
• Core Process: Raw material mixing → extrusion molding → surface lamination/printing → cutting → inspection and packaging.

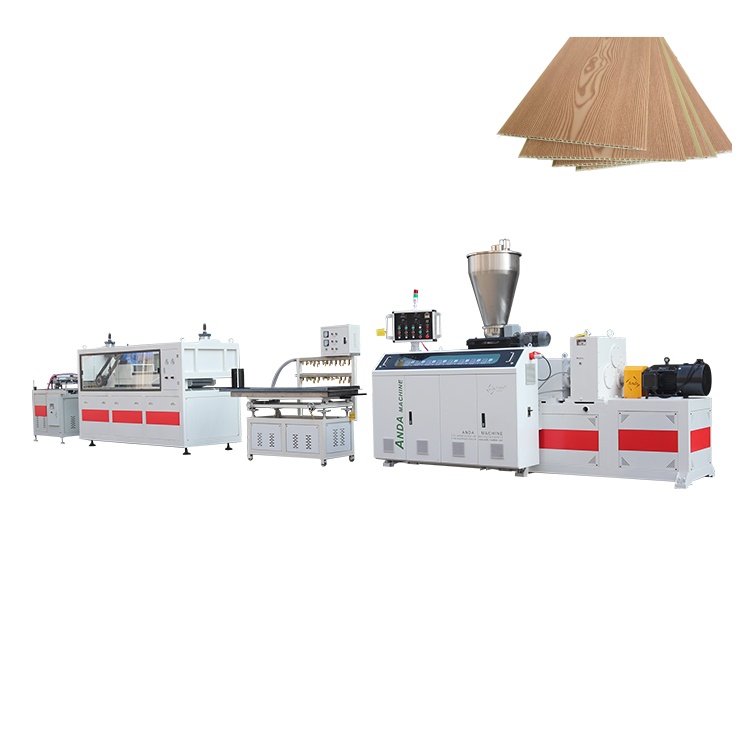

• Equipment Adaptability: Conventional PVC extruders (such as Anda's special PVC wall panel extruders), no complex auxiliary equipment required, high production efficiency, and mass production can be achieved.
• Production Difficulties: Controlling the uniformity of product thickness, avoiding film peeling and surface color difference.
4.2 WPC Wall Panel Production Process and Equipment Requirements
• Core Process: Wood powder drying → raw material mixing (wood powder + resin + additives) → composite extrusion → molding → cutting → sanding → inspection and packaging.

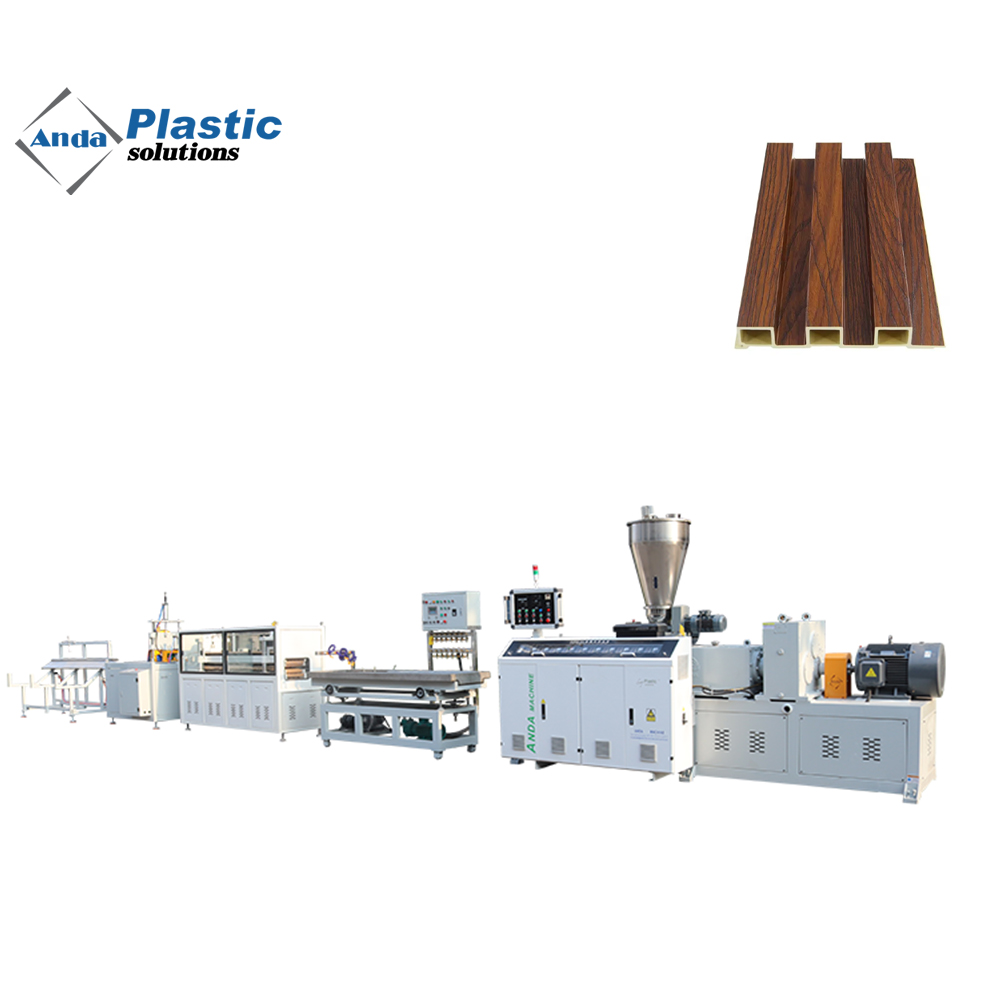

• Equipment Adaptability: Special WPC composite extruders (such as Anda's wood-plastic composite extrusion equipment), requiring supporting auxiliary equipment such as wood powder dryers and mixers, with higher requirements for equipment precision.
• Production Difficulties: Controlling the compatibility between wood powder and resin, avoiding bubbles and cracks in products, and ensuring surface flatness.
4.3 Advantages of Anda Machinery Equipment
• Can provide special extrusion production lines for PVC/WPC wall panels, adapting to different output and specification requirements.
• High equipment precision, which can solve common pain points in the production of the two products (such as PVC color difference, WPC bubbles).
• Customized services, optimizing production processes and equipment configurations according to customers' product positioning (high-end/mid-low-end).

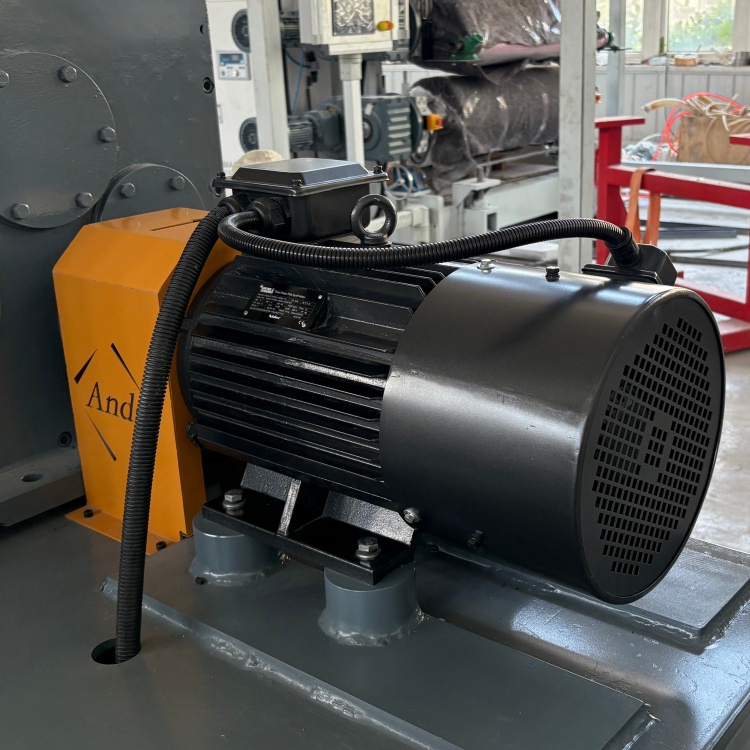

• Anda production line is equipped with a motor that can save 20% of energy, reducing production costs. At the same time, the grating production line can be equipped with high-speed molds, with a daily output of up to 1,400 square meters and 6 meters per minute.
V. Segmentation of Application Scenarios
5.1 Core Application Scenarios of PVC Wall Panels
• Public Works Scenarios: Public areas such as hospitals, schools, shopping malls and subways (low cost, easy to clean, waterproof).
• Home Decoration Scenarios: Humid areas such as bathrooms, kitchens, basements and balconies, as well as decoration of rental houses and affordable housing.
• Special Scenarios: Areas with corrosion resistance requirements such as chemical plants and food processing plants.
5.2 Core Application Scenarios of WPC Wall Panels
• Home Decoration Scenarios: Dry areas such as living rooms, bedrooms and studies, decoration of high-end residences and villas (focusing on texture and environmental protection).
• Outdoor Scenarios: Courtyard landscape walls, balcony encapsulation, outdoor corridors, etc. (anti-aging, high and low temperature resistance).
• Commercial Scenarios: High-end hotels, homestays, exhibition halls, etc. (improving space grade, more worry-free for long-term use).
VI. Purchasing Guide
• Core Principle: Choose according to "use environment + budget + decoration needs", and do not blindly pursue high-end.
• Three Situations to Prefer PVC Wall Panels: Limited budget, use in humid areas, bulk procurement for public works, and pursuit of installation efficiency.
• Three Situations to Prefer WPC Wall Panels: Focus on environmental protection and texture, use in indoor dry areas/outdoors, pursuit of long service life, and high-end decoration positioning.
• Procurement Notes: Check product environmental protection test reports, compare the strength of manufacturers (such as manufacturers equipped with professional equipment like Anda Machinery, with more guaranteed product quality), and confirm after-sales and installation services.
VII. Market Trends and Future Development
• PVC Wall Panels: Developing towards "environmental protection, lightweight and multi-function", reducing the use of plasticizers, improving anti-aging performance, and adapting to more scenarios.
• WPC Wall Panels: Developing towards "high-end, customized and outdoor", optimizing composite processes, reducing production costs, and expanding application scope.
• Industry Trends: With stricter environmental protection policies, both materials are developing towards green and recyclable directions, and the intelligence and high efficiency of production equipment have become core needs (tailored to the upgrading direction of Anda Machinery equipment).
