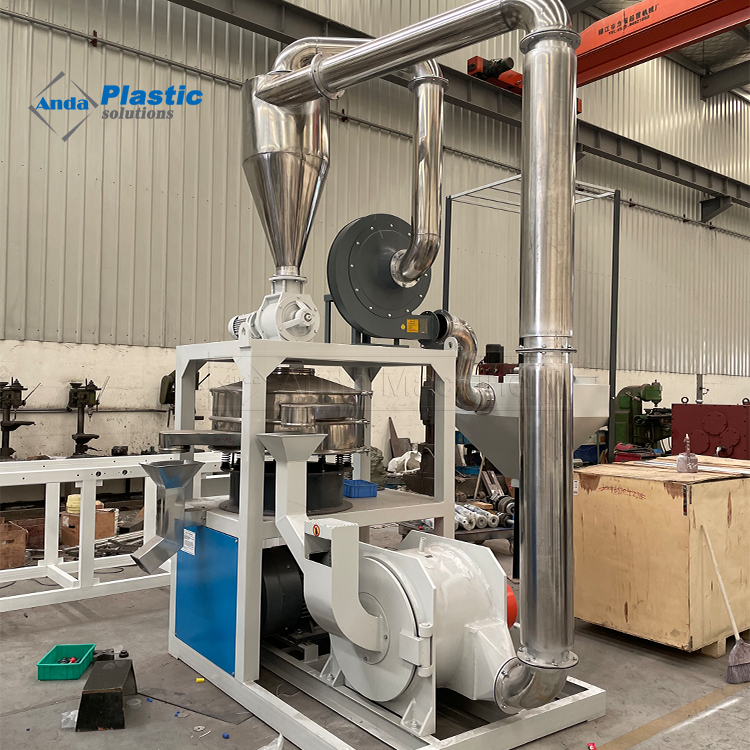

Anda PVC Pulverizer Machine
The heavy-duty energy-saving plastic pulverizer stands out for its remarkable energy efficiency, a key advantage over traditional plastic grinders.
400 heavy duty energy saving PVC pulverizer parameters
1 | blade | movable knives (high-speed wear-resistant steel) |
2 | Main motor speed: | 2550 r/min |
3 | Main motor power | 22 kw (Nidec，Japan) |
4 | bearings | NSK |
5 | induced draft fan | 2.2 kw |

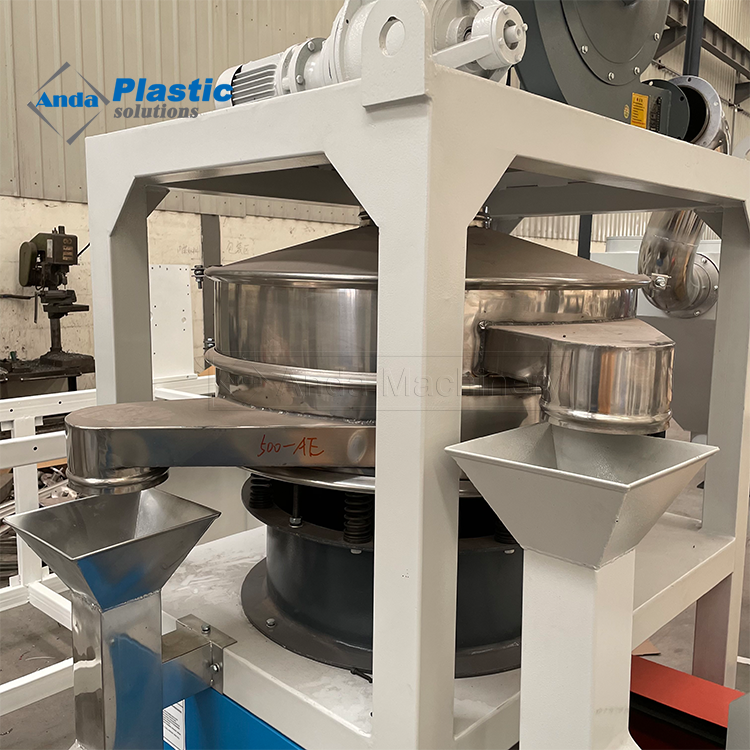

6 | Vibrating screen diameter | 800mm |
7 | Vibrating screen motor power | 0.55KW |
8 | off the fan when unloading | 0.75KW |
9 | Feeding method | Vibrating feeder |
10 | Feed particles | Length 5-10mm, diameter 3-4mm |
11 | Powder size | 10-40 mesh |
12 | Dust removal method | Pulse dust removal |
13 | dust collector | cloth bag+ automatic cleaning |
14 | Connecting pipes | Stainless steel 304 diameter 159mm Material thickness:3mm |
15 | Cooling method (2 layers) | 304 pipe, water cooling |
16 | Material | Except for the blades and the grinding cavity, all parts in contact with the material are made of 304 stainless steel |
17 | Startup method | Frequency conversion speed regulation, inverter brand, Nidec (5 years warranty for drive, 2 years for motor) |
18 | electrical components | Schneider |
19 | Yield | 250-350kg / h |
20 | Voltage | 380V50HZ or customized |
Company Profile
Anda company was established by professional, passionate & responsible peoples who has long time experience in china plastic machines industry, Since inception, Anda company team always believes that excellent product quality reasonable price and professional fast service is the basis for long term cooperation with our customers, Therefore, anda company apply very strict rule for quality, and make high standard level for product quality. At same time, we striving to reducepro-duction cost to offer better price to our customers, And, we also pay much attention to service, we consider service as importantas sales work, we continuously train cur service stuff, improve their service ability and service attitude, so that this team can provide in time, most professional service to each of our customer around the world.
