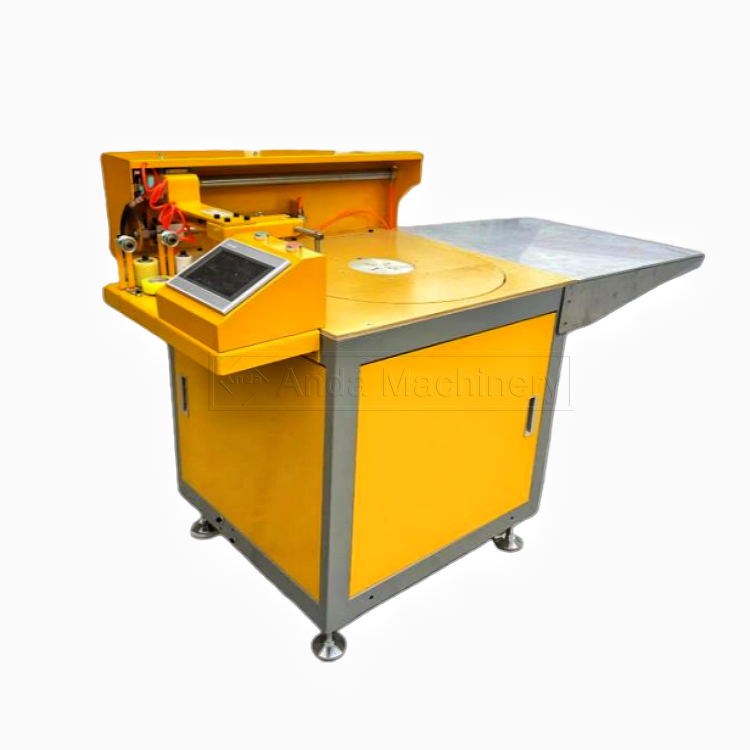

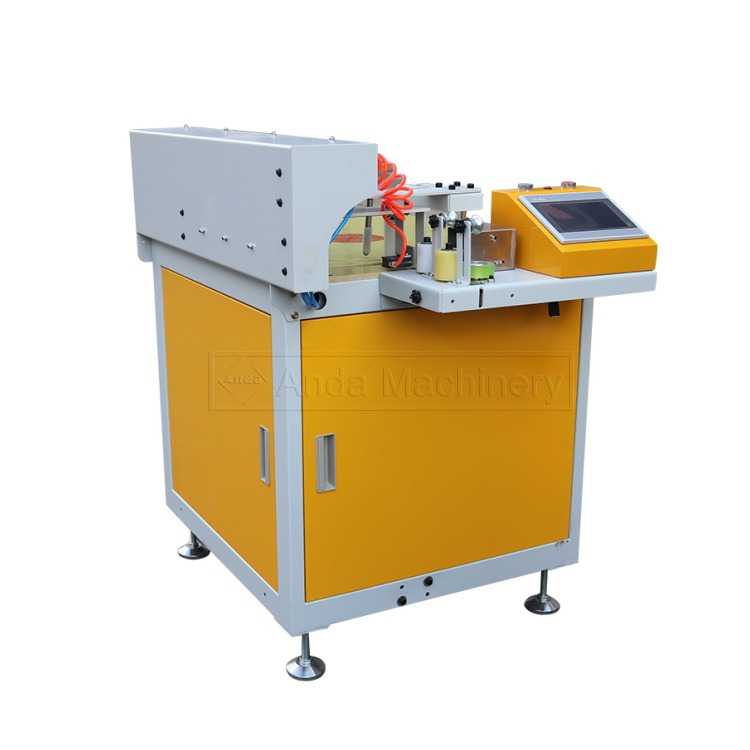

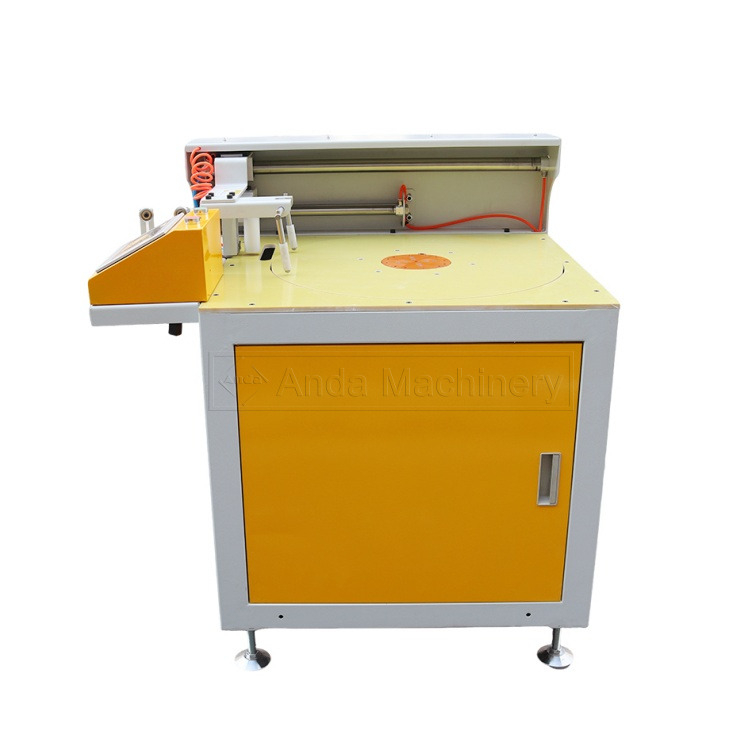

Anda Semi-automatic PVC Edge Band Roll Rewinder
The PVC Edge Band Semi-Automatic Winding Machine is a professional packaging equipment designed for winding and packaging PVC edge bands, melamine edge bands, acrylic edge bands, and other strip-shaped materials. It integrates stability, efficiency, and operability, widely applicable to edge band production plants, furniture manufacturing enterprises, and packaging workshops. By automating the winding process, the machine effectively improves packaging quality, reduces labor intensity, and ensures the edge bands are neatly wound, dust-proof, and damage-proof during storage and transportation.
The semi-automatic winding machine is mainly used for winding in the edge banding extrusion process. It is suitable for edge banding with a thickness of 0.4mm-3mm and a width of 7mm-85mm. The winding inner diameter is 150mm-320mm, and the winding outer diameter is 150mm-800mm. The size and appearance color can be freely customized according to customer requirements.
Product Name | Semi-automatic Winding Machine |
Fixture Size (Winding Inner Diameter Size） | 150-320（mm ) |
Turntable Size (Winding Outer Diameter Size) | 610-800（mm） |
Appearance Size | 1710*730*1030/2040*920*1030 |
Equipment Power | 1KW |
Equipment Quality | 140KG |
Working Air Pressure | 0.4-0.6（Mpa) |
Power Supply Voltage | 220V |
Power Supply Frequency | 50HZ |
 |  |  |

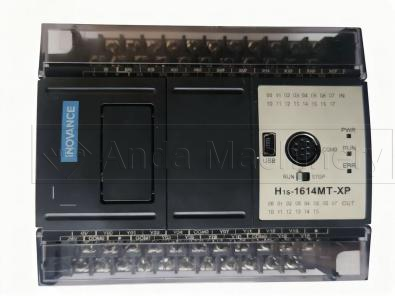

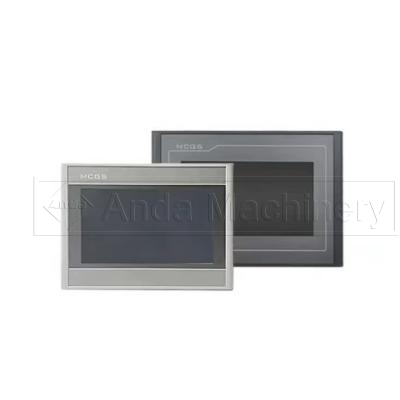

| Adopt a well-known Chinese brand servo motor, with low energy consumption and accurate torque control | The touch screen adopts the MCGS brand, the top-selling in the industry, with precise touch control and sensitive response. | The PLC adopts Inovance, a leading Chinese brand, equipped with a high-performance processor. It boasts high instruction execution efficiency, enabling rapid response to complex control tasks and ensuring stable performance. |
Check whether the power supply, air source (if equipped), and wiring are normal, ensuring no loose connections or leakage.
According to the specification of the edge band, select the appropriate winding core and install it on the winding shaft firmly.
Adjust the guide device and pressure roller to match the width and thickness of the edge band, ensuring smooth feeding.
Turn on the power switch, preheat the machine (if necessary), and test-run it to check whether each component operates normally.
Set the winding length, speed, and number of layers on the control panel according to the production requirements.
Manually feed the head of the edge band through the guide device, fix it on the winding core, and ensure the initial position is correct.
Press the "Start" button, the machine will start automatic winding. During the process, observe the winding condition in real time, and adjust the speed or pressure if necessary.
When the winding reaches the set length, the machine will automatically stop. Cut the edge band manually, and fix the end of the band with adhesive tape or strapping.
Remove the wound edge band roll from the winding shaft, replace with a new winding core, and repeat the above steps for the next batch of operation.
Set the winding length, speed, and number of layers on the control panel according to the production requirements.
Manually feed the head of the edge band through the guide device, fix it on the winding core, and ensure the initial position is correct.
Press the "Start" button, the machine will start automatic winding. During the process, observe the winding condition in real time, and adjust the speed or pressure if necessary.
When the winding reaches the set length, the machine will automatically stop. Cut the edge band manually, and fix the end of the band with adhesive tape or strapping.
Remove the wound edge band roll from the winding shaft, replace with a new winding core, and repeat the above steps for the next batch of operation.
