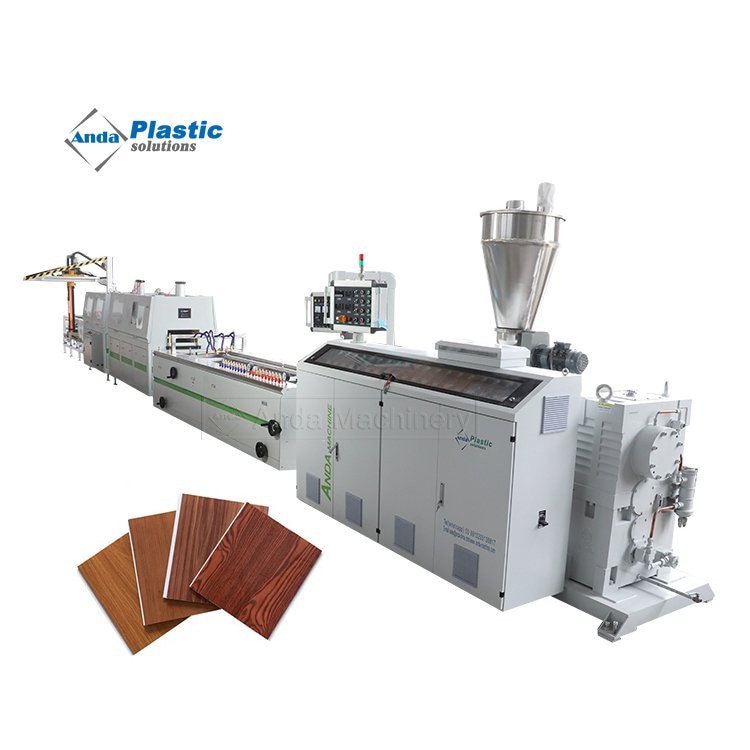

High Speed 65/138 Conical Twin Screw PVC Ceiling Wall Panel Making Manufacturing Machine Extruder Line

High Speed 65/138 Conical Twin Screw PVC Ceiling Wall Panel Making Manufacturing Machine Extruder Line adopt many world famous parts such as ABB frequency converter, Siemens motor, JAC gear box, Schneider contactor and so on, as well as adopt PID control to guarantee the high efficiency of the production line. Our PVC wall panel making machine is made up of four parts, they are extruder, cooling table, hauling engine and cutting machine. It is used to produce PVC ceiling panel or PVC wall panel and they can be made in varies of specifications, like the width of 15cm, 20cm, 25cm, 30cm, 60cm.
Availability:
Quantity:
  • 65/138
  • Anda Machinery
  • China
  • JINSE

Main Features of Pvc Ceiling Wall Panel Making Machine:

1.High speed, double output than common PVC wall panel production line, greatly decrease the labour cost and electricity cost and manage cost.

2.Extruder adopts PVC ceiling dedicated screw, make sure best plasticizing effect

3.Extruder speed and haul off speed controlled by ABB frequency converter, saving power and easy adjusting speed

4.Extruder temperature adopt PID control, temperature fluctuation self adjusting, it realize the high automatic level

5.The caco3 filler can up to 300phr, formula cost is greatly reduced.

6.Equipped with infrared tracking device which can eliminate the problem of fluctuation of extrusion flow rate, further can make sure get best product

7.Lower power consumption,it can save 25-30% electrical power consumption comparing with most  kind PVC ceiling production line.

8.With online hot stamping, easy operation, saving labour.



Parameters of Pvc Ceiling Wall Panel Making Machine:

Model

SJSZ48/113

SJSZ55/110

SJSZ65/132

SJSZ55/110

Double out

Product  width

150mm-250mm

250mm-350mm

400mm-600mm

>200mm

Extruder

SJSZ48/113

SJSZ55/110

SJSZ65/132

SJSZ55/110

Capacity per 24h

>800m2

>1200m2

>1600m2

>1600m2


The details of Pvc Ceiling Wall Panel Making Machine:

  1. PVC wall panel making machine--extruder

高速1

(1) Adopt Siemens motor (effective control the starting current, lower staring power, reduce voltage fluctuation)

Machine For Produce Pvc Wall Panel PVC Ceiling Wall Panel Making Machine / Extrusion Machine / Production Line


(2) Adopt JC gear box (high efficiency, high bearing capacity, transfer smoothly, compact structure)

Machine For Produce Pvc Wall Panel PVC Ceiling Wall Panel Making Machine / Extrusion Machine / Production Line


(3) Adopt twin screw extruder (which use 38CrMoAL material -- high-wearing, high strength, high temperature resistance, corrosion resistance)

Machine For Produce Pvc Wall Panel PVC Ceiling Wall Panel Making Machine / Extrusion Machine / Production Line


(4) Adopt PID control (temperature fluctuation self adjusting and realize the high automatic level)

Machine For Produce Pvc Wall Panel PVC Ceiling Wall Panel Making Machine / Extrusion Machine / Production Line


2. pvc wall panel extruder machine--cooling table

Adopt vacuum system to help the PVC products fast finalization and guarantee it is not out of shape.

高速2


3. pvc panel machine wall panel making--hauling engine

The material of hauling is not too hard which can well protect the transfer of product. It could help the effective traction.

高速3


4.pvc wall panel production machine--cutting machine

The blade is hard and sharp which has high efficiency and long service time. It also adopt sensing system and easy to cooperate.

高速4


5. pvc wall panel extruder line--stacking machine

高速5


6. pvc wall panel extruder machine--the final product

高速6
