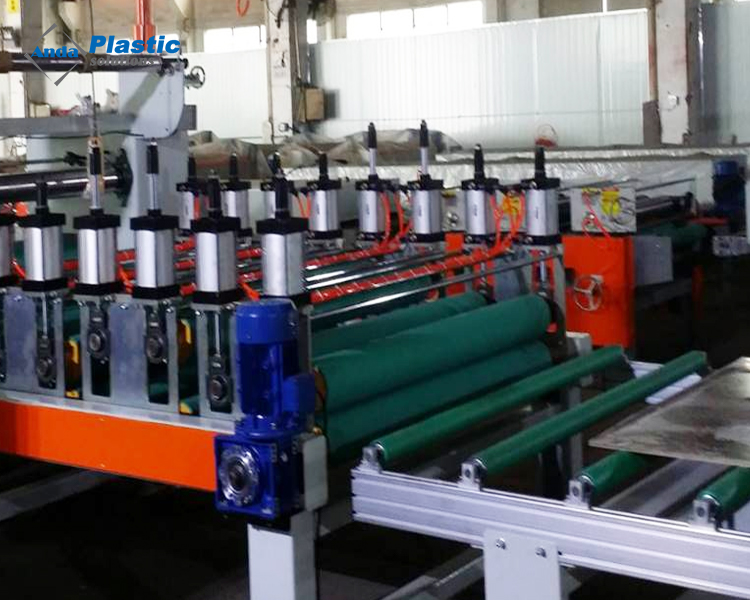

PVC Flat Lamination Machine

Product Overview:
ANDA's PVC Flat Lamination Machine is designed for applying decorative films and surface materials to PVC foam boards, MDF, particleboards, honeycomb boards, multilayer boards, and other compatible flat substrates.
Using PUR hot melt adhesive technology, the machine supports decorative board production for furniture, interior panels, and building decoration applications.
Key Features:
Multiple Board Materials: Suitable for PVC foam boards, MDF, particleboards, and other compatible flat substrates.
PUR Hot Melt Lamination: Supports bonding of PVC decorative films, veneers, and suitable decorative materials.
Three Working Widths: PUR300, PUR600, and PUR1300 models available.
Adjustable Production Speed: Up to 45 m/min for PUR300 and PUR600; up to 20 m/min for PUR1300.
PLC Control System: Supports coordinated machine operation and process adjustments.
Flexible Machine Configuration: Gluing and pressing arrangements can be selected according to production requirements.
Availability:
Quantity:
Inquire Add to Basket

  • China

  • JINSE

Key Features and Benefits

Compatible with Multiple Flat Substrates

The machine can be configured to process PVC foam boards, MDF, particleboards, honeycomb boards, and multilayer boards.

This makes it suitable for manufacturers producing different decorative board products.

PUR Hot Melt Adhesive Lamination

PUR hot melt adhesive is used to bond compatible decorative materials to board surfaces.

Adhesive selection, application conditions, and curing requirements should be matched to the intended finished product.

Flexible Working Width Options

Three available models provide maximum working widths of 300 mm, 600 mm, and 1300 mm.

Manufacturers can select a suitable model based on board dimensions and production needs.

Adjustable Production Speed

The machine supports adjustable working speed according to the model.

The PUR300 and PUR600 models are specified at up to 45 m/min, while the PUR1300 model reaches up to 20 m/min.

Actual production speed depends on the substrate, adhesive, decorative material, and operating conditions.

PLC-Controlled Operation

PLC control supports coordinated machine operation and simplifies adjustments during production.

Configurable Lamination System

The gluing and pressing arrangements can be adapted to different production requirements.

Customers can discuss their board dimensions and decorative materials with ANDA to determine an appropriate configuration.

Compatible Materials and Applications

The PVC Flat Lamination Machine supports different decorative board applications, subject to substrate, adhesive, and surface-material compatibility.

PVC Foam Boards

Decorative PVC films can be laminated onto suitable PVC foam boards for interior decoration and panel applications.

MDF and Particleboards

Compatible decorative films and veneers can be applied to MDF and particleboards used in furniture and cabinet manufacturing.

Honeycomb Boards

Lightweight honeycomb boards can be laminated with suitable surface materials for decorative panel applications.

Multilayer Boards

Compatible multilayer boards can receive decorative surface finishes for interior products and furniture components.

Technical Specifications

ANDA offers three PUR lamination machine models to accommodate different board dimensions and production requirements.

Parameter

PUR300

PUR600

PUR1300

Maximum Working Width

300 mm

600 mm

1300 mm

Workpiece Thickness

2–80 mm

2–80 mm

2–80 mm

Working Speed

0–45 m/min

0–45 m/min

0–20 m/min

Total Power

11.5 kW

16.9 kW

36.5 kW

Machine Dimensions (L × W × H)

7300 × 800 × 1900 mm

5300 × 1000 × 2200 mm

1950 × 1400 × 2200 mm

The above specifications are based on published product information. Please confirm the final machine dimensions, processing configuration, and technical requirements with ANDA before ordering.

How to Choose the Right PVC Flat Lamination Machine

Selecting a suitable machine requires matching the equipment configuration to the substrate and decorative material.

Selection Factor

What to Confirm

Board Material

PVC foam board, MDF, particleboard, or other substrate

Board Width

Maximum required working width

Board Thickness

Required thickness within the supported range

Surface Material

PVC decorative film, veneer, or other suitable material

Adhesive

PUR type and application requirements

Production Speed

Target line speed and output requirements

Machine Configuration

Required gluing and pressing arrangements

Provide these details to ANDA to discuss the appropriate machine model and configuration.

Main Components of the PVC Flat Lamination Machine

1. PUR Hot Melt Gluing Unit

The PUR gluing unit applies adhesive to the substrate or decorative material according to the selected machine configuration.

Controlled adhesive application is important for consistent lamination and bonding performance.

2. Decorative Material Feeding System

The feeding system guides PVC decorative film, veneer, or other suitable surface materials into the lamination area.

Proper material alignment helps maintain consistent positioning during production.

3. Pressing and Lamination Unit

The pressing unit brings the decorative material and substrate into contact.

Suitable roller pressure and machine adjustment help achieve consistent lamination across the working surface.

4. PLC Control System

The PLC control system supports coordinated operation of the machine.

Operators can adjust relevant settings according to the substrate, decorative material, and production requirements.

5. Configurable Gluing and Pressing Sections

ANDA's machine design separates the gluing and pressing sections, allowing different pressing arrangements to be selected for specific applications.

This configuration provides flexibility when adapting the equipment to different production requirements.

Frequently Asked Questions

What is a PVC flat lamination machine?

A PVC flat lamination machine applies decorative surface materials to flat substrates using adhesive and a pressing system. It is used to manufacture decorative boards for furniture, interiors, and building applications.

What materials can this machine laminate?

ANDA lists PVC foam boards, MDF, particleboards, honeycomb boards, and multilayer boards as potential substrates. Material compatibility should be confirmed for each application.

Does the machine use PUR hot melt adhesive?

Yes. The published ANDA product information describes the use of PUR adhesive for decorative material lamination.

What decorative materials can be used?

The published product description includes PVC films, veneers, and melamine papers. Suitability depends on the material structure, adhesive formulation, and machine configuration.

What is the maximum working width?

The available models have maximum working widths of 300 mm, 600 mm, and 1300 mm.

What is the maximum working speed?

PUR300 and PUR600 are specified at up to 45 m/min. PUR1300 is specified at up to 20 m/min.

What is the difference between flat lamination and profile wrapping?

Flat lamination primarily applies decorative materials to broad, flat board surfaces. Profile wrapping uses a pressing arrangement designed to follow the contours of shaped profiles.

Can ANDA customize the machine?

Customers can discuss board dimensions, surface materials, adhesive requirements, and machine configurations with ANDA to determine a suitable solution.
