PVC Window Sill Board Extrusion Line

Heating and Cooling PVC mixer compound machine is widely used to mix PVC powder with some other materials in the industry of PVC pipe, PVC profile, PVC board/sheet, WPC material batching compounding and so on.

Decoration PVC Marble Sheet Making Machine is applied to produce PVC sheet with width of 1220mm and length with 2440mm, thickness mostly from 2.5 to 4mm. The surface of PVC sheet generally treated by hot stamping or lamination, then coated by UV varnish. By switching film with different color. After coating UV glossy varnish, the surface of PVC sheet is more smooth and wearable. It can also produce LVT floor by some adjustment and with related auxiliary machines.

LVT floor production line mainly produces LVT floor with 1200mm wide and 1.5-3mm thick. It has the advantages of high degree of automation, simple operation, stable and reliable production operation and high yield.

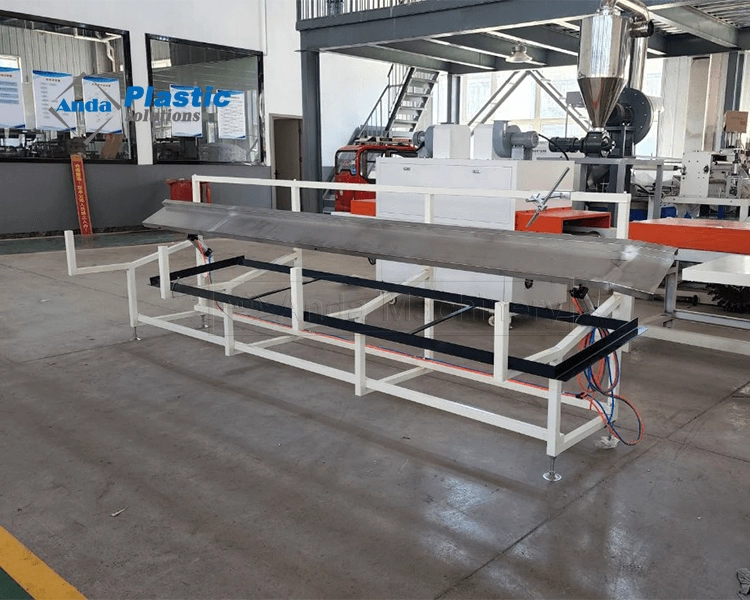

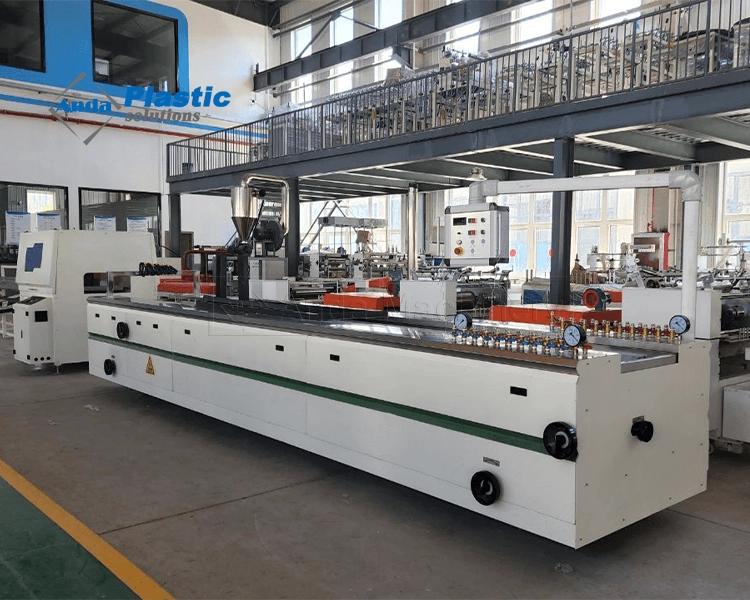

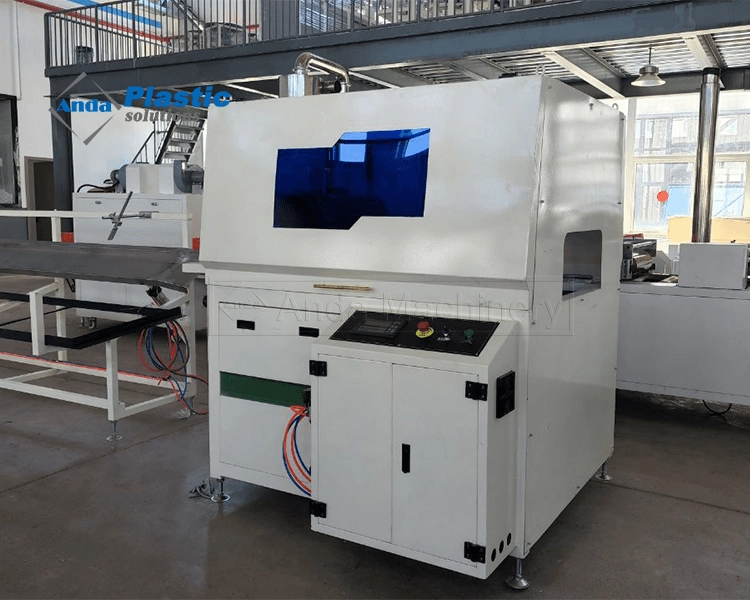

PVC door and window profile making machine mainly composed by conical Twin Screw Extruder, Cooling Table, Hauling Machine, Cutting Machine, Stacker. With different moulds, it can produce various UPVC profile, such as: PVC window door profile, PVC wall panel, PVC window sill board, cabinet door board, curtain box, PVC trucking, cable duct, PVC skirting, PVC protection corner and so on.
And by changing screw barrel and mould, it can also produce PVC based WPC products, such as: WPC wall panel, WPC window door frame moldings, skirting moldings, WPC door board etc.

The Bamboo Charcoal Wall Panel Production Line is designed for continuous extrusion production of bamboo charcoal decorative wall panels in different profiles, sizes and surface finishes. The complete line integrates a conical twin screw extruder, customized extrusion die, vacuum calibration table, cooling system, haul-off, cutting machine and stacker. Anda Machinery can customize the production line according to the bamboo charcoal material formulation, wall panel profile, dimensions, target output and surface finishing requirements.

The ANDA WPC louver panel production line produces PVC-based louver, fluted, slat and decorative wall panels.
It integrates feeding, extrusion, calibration, cooling, haul-off and cutting. Optional hot stamping creates various decorative finishes. Different panel sizes and profiles can be produced by changing the molds.
Main Production Capabilities:

• Produces WPC louver and fluted wall panels
• Supports reference panel widths from 200 to 600 mm
• Conical twin-screw extrusion system
• PID multi-zone temperature control
• Synchronized extrusion and haul-off speeds
• Optional online hot-stamping system
• Customized molds for different panel profiles
• Reference daily output up to 8,000 kg*
• Installation and production training available

Product Overview：
The ANDA PVC Ceiling Panel Extrusion Line is designed for the continuous production of rigid PVC ceiling panels and hollow decorative ceiling profiles.

The complete line integrates PVC plasticization, mould forming, vacuum calibration, water cooling, synchronized haul-off and automatic cutting. Optional hot-stamping or laminating equipment can be added for decorative surface finishing.

Four machine configurations support common panel widths from 200 mm to 600 mm. Reference production capacity ranges from more than 800 m² to 3,300 m² per day, depending on the panel weight, PVC formulation, mould structure and cooling conditions.

• Panel widths from 200–600 mm
• Four production-line configurations
• Reference output above 800–3,300 m²/day
• PID temperature control
• Variable-speed extrusion and haul-off
• Optional online hot stamping
• Custom moulds for different ceiling profiles

UPVC ceiling panel production line  is used to produce PVC ceiling tiles with 595x595, 600×600 , 603x603. The surface of PVC ceiling tile can be treated by to hot stamping for different color or patterns to fit various decoration style.

Main Product Features：

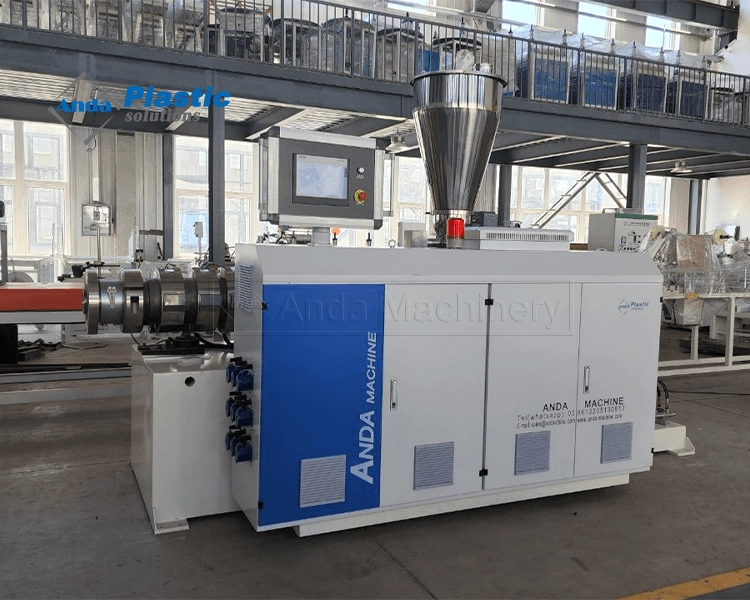

• Conical twin screw structure for stable PVC processing
• Five models covering outputs from 80 to 850 kg/h
• Suitable for prepared PVC dry blends and compounds
• Controlled feeding, compression and plasticization
• Independent barrel temperature zones
• PID temperature control
• Variable-frequency screw speed adjustment
• 38CrMoAl screw and barrel configuration
• PLC touchscreen control available
• Configurable motor, gearbox and electrical components
• Compatible with different dies and downstream equipment

Anda Twin screw Pvc Edge Banding Production Line is used to produce PVC edge band, it's widely used for edge sealing of MDF, HDF, particle board, composite board and so on.

PVC edge band production line with Calender Cooling is used to produce PVC edge band with different width, section shape and thickness. The surface of PVC edge band can be treated by three color printing & coated with glossy oil, or by heat transfer printing.

The PVC Door Board Making Machine is designed to manufacture rigid PVC door boards through a continuous extrusion process. Available in YF700, YF800 and YF900 configurations, it supports maximum board widths of 700 mm, 800 mm and 1000 mm, with production capacity of up to 10,000 kg per day. The machine provides stable extrusion, precise temperature control and flexible configuration options for PVC door board manufacturers.

PVC Water Pipe Making Machine Overview:
The PVC Water Pipe Making Machine is designed for continuous production of PVC and UPVC pipes for water supply, agricultural irrigation, well casing, drainage, and other fluid transportation applications.

• Wide Pipe Range: Produces PVC/UPVC pipes from 16–800 mm in diameter.
• High Output: Available capacities from approximately 150–1300 kg/h.
• Complete Production Process: Integrates extrusion, moulding, vacuum calibration, hauling, cutting, stacking, and optional belling.
• Flexible Pipe Production: Different pipe diameters and wall thicknesses can be produced by changing suitable tooling.
• Stable & Automated Control: Siemens PLC and SSR heating control support centralized operation and stable extrusion.
• Water Pipe Applications: Suitable for water supply, agricultural irrigation, well casing, drainage, and fluid transportation pipes.

The PVC Conduit Pipe Making Machine is designed for efficient production of PVC and UPVC electrical conduit pipes for cable protection and wiring applications.

• Double Output: Produces two conduit pipes simultaneously for higher efficiency.
• Pipe Size:Supports conduit diameters from **16–63 mm**.
• High Output: Production capacity of approximately **125–200 kg/h**.
• Stable Extrusion: Conical twin-screw design ensures consistent PVC processing.
• Flexible Production:Different pipe sizes and wall thicknesses can be produced by changing tooling.
• Easy Control: Intelligent temperature and inverter speed control simplify operation.
