SRL-Z 500/1000 High-Low Speed Plastic Mixer Unit For PVC Powder

Name: SRL-Z 500/1000 High-Low Speed Plastic Mixer Unit For PVC Powder
Brand: Anda Machinery
Rating: 5.0 (25 reviews)

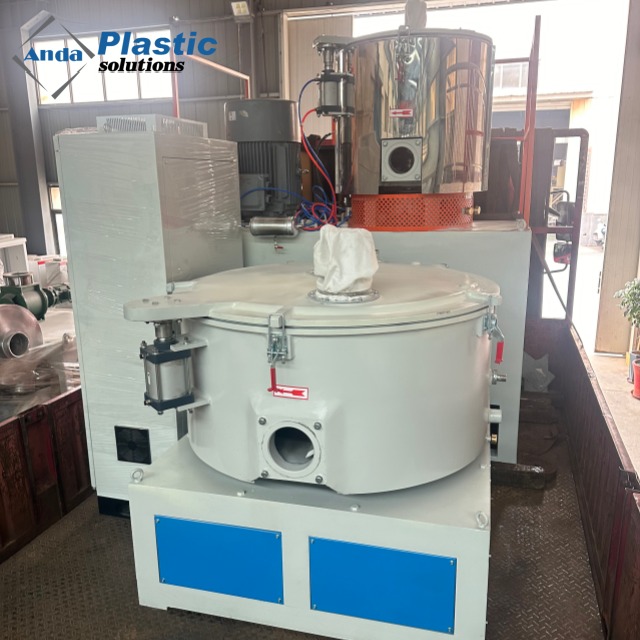

The SRL-Z 500/1000 High-Low Speed Mixer Unit from Anda Machinery is specifically engineered for the high-efficiency compounding, mixing, and coloring of PVC resins, plastic powders, CaCO3, and various additives. It combines a 500L High-Speed Hot Mixer and a 1000L Low-Speed Cold Mixer into one automated, seamless system. This unit is widely utilized in PVC pipe, profile, sheet, and board extrusion production lines to ensure a perfectly homogeneous raw material blend before extrusion.

Availability:

Quantity:



Inquire Add to Basket

Model:
SRL-Z 500/1000
Brand:
Anda Machinery
国家:
China
YANSE:
JINSE

Product Description

SRL-Z 500/1000 High-Low Speed Plastic Mixer Unit for PVC Powder

Key Features & Advantages

Dual-Pot Synchronized System: The upper 500L hot mixer utilizes high-speed friction to rapidly blend and pre-heat materials, while the lower 1000L cold mixer cools the mixture efficiently to eliminate residual gases and prevent caking.
Premium SUS304 Construction: Both the inner wall of the pots and the highly optimized mixing blades are crafted from premium SUS304 stainless steel. The surface is mirror-polished, ensuring extreme wear resistance, corrosion resistance, and zero material contamination.
Advanced Pneumatic Discharging: Equipped with heavy-duty pneumatic cylinders for automatic discharge. The discharge valves seal tightly with no leakage and open completely for zero-residue material transfer.
High-Torque Reliable Drive: Powered by industrial-grade copper core motors featuring soft-start capability to reduce grid impact and ensure stable, low-noise operation under continuous full-load conditions.
Dynamic Balance Testing: All mixing blades undergo strict static and dynamic balancing tests to eliminate vibration and significantly prolong the lifespan of main bearings and seals.

Item	Unit	Hot Mixer Parameter	Cold Mixer Parameter
Total Tank Volume	L	500	1000
Single Batch Charging Capacity (PVC Resin Powder)	Kg/Batch	220	-
Agitator Blade Speed	r/min	860	50
Mixing/Cooling Time	Min/Batch	Approx. 10	Approx. 10 (cooling to approx. 55℃)
Applicable Power Supply	V/Hz	AC 380/50	AC 380/50
Air Source Pressure	MPa	0.39~0.49	0.39~0.49
Tank Structure & Material	/	Inner layer: stainless steel, middle & outer layers: carbon steel	Inner layer: stainless steel, outer layer: carbon steel
Blade Structure & Material	/	Three-layer stacked type, cast stainless steel	Straight type, cast stainless steel
Tank Inner & Outer Surface Treatment	/	Inner layer: polished to bright finish; outer layer: paint coating	Inner layer: polished to bright finish; outer layer: paint coating
Baffle Structure	/	/	Triangular shape on tank wall
Tank Cover Material & Hole Layout	/	Aluminum alloy, 3 holes (charging hole, exhaust hole)	Aluminum alloy, 3 holes (charging hole, exhaust hole)
Tank Cover Opening Method	/	Pneumatic cylinder top cover, manual rotation	Pneumatic cylinder top cover, manual rotation
Tank Cover Sealing Method	/	Double high-temperature resistant rubber seals	Double high-temperature resistant rubber seals
Main Shaft Bearing Configuration	/	3 sets (with stages)	1 set
Main Shaft Sealing Method	/	Skeleton high-temperature oil seal + PTFE sealing sleeve	/
Frame Structure & Material	/	Split combined type; welded section steel & steel plate	Split combined type; welded section steel & steel plate
Motor Power	KW	75	15
