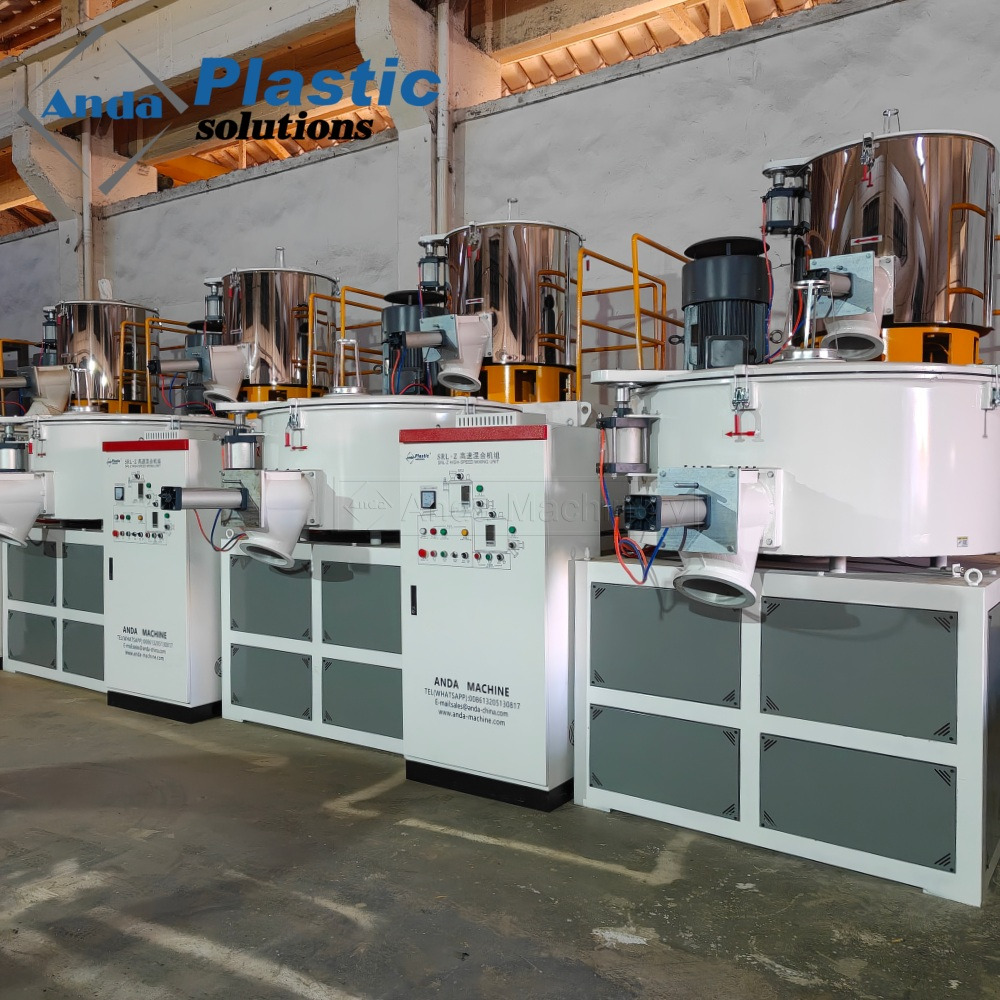

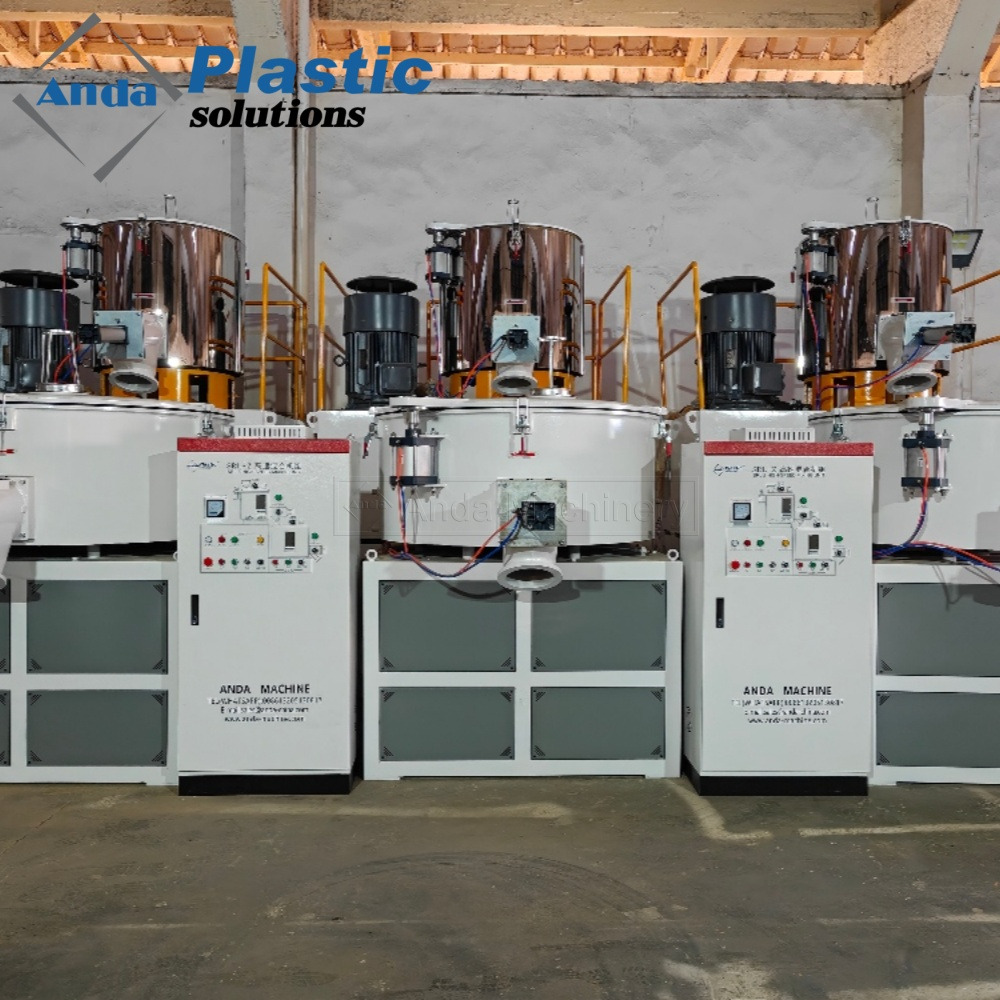

SRL-Z Series High-Speed Mixer Unit For PVC/WPC Powder

The Anda Machinery SRL-Z series high-speed heating and cooling mixer unit is the premier solution for raw material pre-treatment in plastic extrusion. It is widely used for the homogeneous compounding, coloring, and drying of PVC powder, WPC formulations, and various plastic additives. With its integrated hot-and-cold combination design, it ensures maximum process efficiency and excellent bulk density control before extrusion.
Availability:
Quantity:
Inquire Add to Basket

  • SRL-Z 500/1000

  • Anda Machinery

  • China

  • JINSE

SRL-Z Series High-Speed Mixer Unit For PVC/WPC Powder

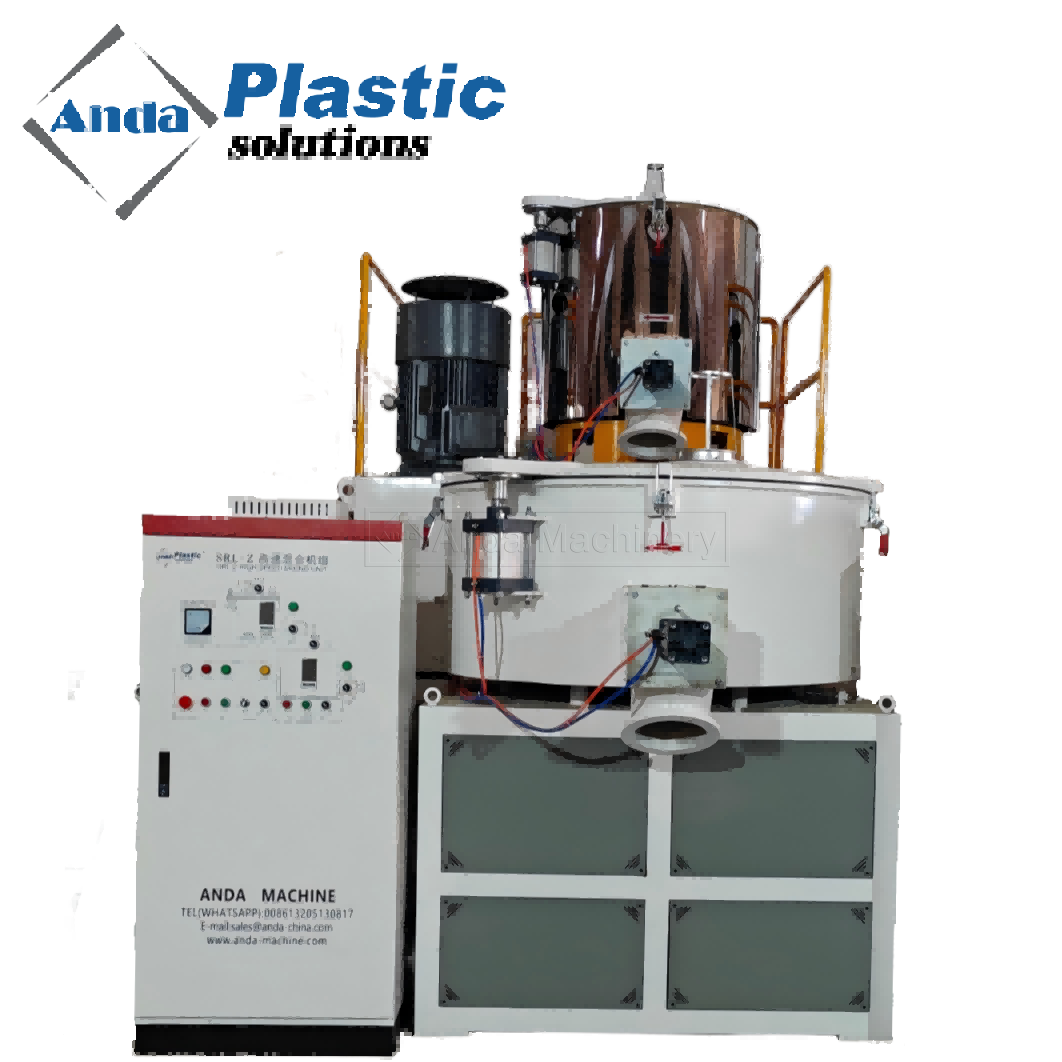

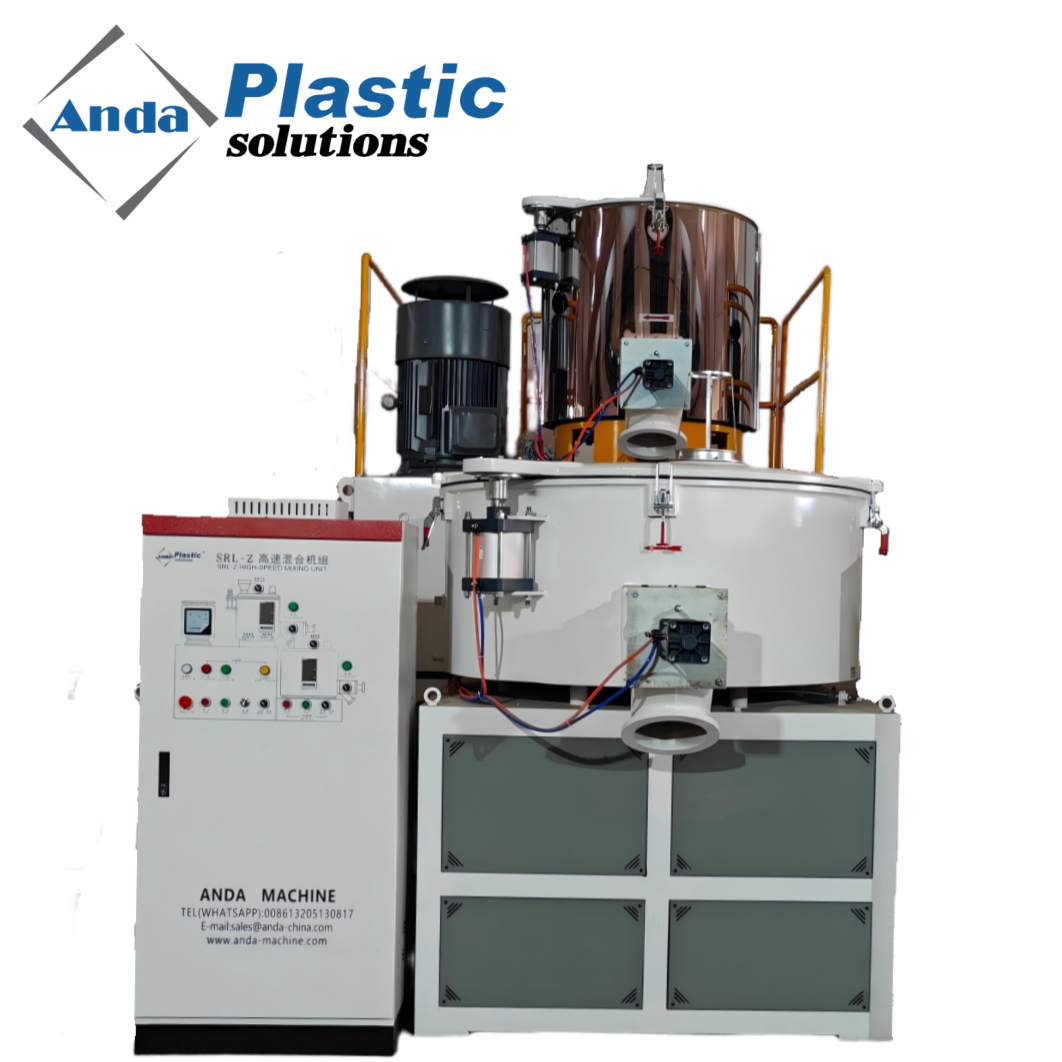

IMG20260825173622 (1)(2)_副本.png

Key Features & Advantages

  • Dual-Pot Synchronized System: The upper 500L hot mixer utilizes high-speed friction to rapidly blend and pre-heat materials, while the lower 1000L cold mixer cools the mixture efficiently to eliminate residual gases and prevent caking.

  • Premium SUS304 Construction: Both the inner wall of the pots and the highly optimized mixing blades are crafted from premium SUS304 stainless steel. The surface is mirror-polished, ensuring extreme wear resistance, corrosion resistance, and zero material contamination.

  • Advanced Pneumatic Discharging: Equipped with heavy-duty pneumatic cylinders for automatic discharge. The discharge valves seal tightly with no leakage and open completely for zero-residue material transfer.

  • High-Torque Reliable Drive: Powered by industrial-grade copper core motors featuring soft-start capability to reduce grid impact and ensure stable, low-noise operation under continuous full-load conditions.

  • Dynamic Balance Testing: All mixing blades undergo strict static and dynamic balancing tests to eliminate vibration and significantly prolong the lifespan of main bearings and seals.

  • Machine Details


Item

Unit

Hot Mixer Parameter

Cold Mixer Parameter

Total Tank Volume

L

500

1000

Single Batch Charging Capacity (PVC Resin Powder)

kg/batch

220

/

Agitator Blade Speed

r/min

860

50

Mixing/Cooling Time

min/batch

Approx.10

Approx.10(cooling to approx.55℃）

Applicable Powder Supply

v/hz

AC380/50

AC380/50

Air Source Pressure

mpa

0.39-0.49

0.39-0.49

Tank Structure&Material

/

Inner layer:stainless steel,

middle & outer layers:

Inner layer:stainless steel,outer layer:carbon steel

Blade Structure &Material

/

Three-layer stacked type,cast stainless steel

Straight type ,cast stainless steel

Tank Inner&Outer Surface Treatment

/

Inner layer:polished to bright finish;outer layer:paint coating

Inner layer:polished to bright finish;outer layer:paint coating

Baffle Structure

/

Triangular shape on tank wall

Tank Cover Material &Hole Layout

/

Aluminum alloy,3 holes (charging hole,exhaust hole)

Aluminum alloy,3 holes(charging hole,exhaust hole)

Tank Cover Opening Method

/

Pneumatic cylinder top cover,manual rotation

Pneumatic cylinder top cover,manual rotation

Tank Cover Sealing Method

/

Double high-temperature resistant rubber seals

Double high-temperature resistant rubber seals

Main Shaft Bearing Configuration

/

3 sets (with stages)

1 set

Main Shaft Sealing Method

/

Skeleton high-temperature oil seal +PTFE sealing sleeve

/

Frame Structure&Material

/

Split combined type;welded section steel&steel plate

Split combined type;welded section steel&steel plate

Motor Power

kw

75

15
